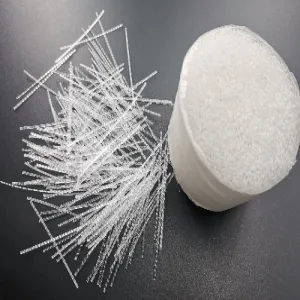

Polypropylene Filament Fiber

Introduction

Polypropylene Filament Fiber is a high-performance Synthetic Fiber made from polypropylene polymer through advanced extrusion and spinning processes. Known for its excellent mechanical strength, chemical resistance, and lightweight properties, this fiber has become an essential material across multiple industries, including construction, textiles, geotechnical engineering, and industrial manufacturing.

In modern applications, polypropylene filament fiber is widely used for reinforcement, durability enhancement, and crack control. Its ability to improve structural integrity while remaining cost-effective makes it a preferred alternative to traditional reinforcement materials such as steel in certain use cases.

What Is Polypropylene Filament Fiber?

Polypropylene Filament Fiber refers to continuous or long-cut synthetic Fibers produced from polypropylene resin. Unlike staple fibers, filament fibers are characterized by their longer length and consistent structure, making them suitable for applications requiring higher tensile strength and durability.

These fibers can be manufactured in different forms, including monofilament, multifilament, and fibrillated structures, depending on the intended application.

Manufacturing Process

The production of polypropylene filament fiber typically involves:

1. Polymerization – Propylene monomers are polymerized to form polypropylene resin.

2. Extrusion – The molten polymer is extruded through spinnerets to form continuous filaments.

3. Cooling – The filaments are cooled and solidified.

4. Drawing – Fibers are stretched to align molecular chains, enhancing strength.

5. Cutting or Winding – Fibers are either cut into specific lengths or wound into continuous filaments.

6. Surface Treatment – Optional treatments improve bonding performance in Composite Materials.

Key Technical Parameters

1. Material Composition

• 100% Virgin Polypropylene

• Optional additives for UV resistance or anti-static properties

2. Fiber Diameter

• Typically ranges from 10 to 50 microns

3. Length

• Continuous filament or cut lengths from 6 mm to 60 mm

4. Tensile Strength

• 300 MPa to 700 MPa

5. Elastic Modulus

• 3 GPa to 10 GPa

6. Density

• Approximately 0.91 g/cm³ (lightweight material)

7. Melting Point

• Around 160°C to 170°C

8. Water Absorption

• Near zero (hydrophobic material)

9. Chemical Resistance

• Resistant to acids, alkalis, and salts

Key Features of Polypropylene Filament Fiber

1. High Tensile Strength

Provides excellent reinforcement capability in various materials.

2. Lightweight Structure

Low density reduces overall weight in composite applications.

3. उत्कृष्ट Chemical Resistance

Performs well in harsh chemical environments without degradation.

4. Hydrophobic Nature

Does not absorb water, maintaining stability in moist conditions.

5. Excellent Dispersion

Easily disperses in concrete, mortar, and other mixtures.

6. Crack Control Capability

Effectively reduces plastic shrinkage and cracking.

7. Thermal Stability

Maintains performance under moderate temperature conditions.

Advantages of Polypropylene Filament Fiber

1. Cost-Effective Reinforcement

Provides a more economical alternative to Steel Fibers in many applications.

2. Corrosion Resistance

Unlike metal reinforcements, it does not rust or corrode.

3. Improved Durability

Enhances the lifespan of structures and materials.

4. Easy Handling and Mixing

Lightweight and easy to transport, store, and apply.

5. Enhanced Safety

Reduces the risk of injury compared to Steel Fibers.

6. Environmental Resistance

Performs well in wet, chemical, and outdoor environments.

Types of Polypropylene Filament Fiber

1. Monofilament Fiber

• Single continuous strand

• Smooth surface

• Ideal for crack control

2. Multifilament Fiber

• Multiple fine filaments combined

• Improved bonding and flexibility

3. Fibrillated Fiber

• Net-like structure

• Excellent mechanical interlocking

4. Twisted Filament Fiber

• Enhanced cohesion and strength

• Suitable for heavy-duty applications

Application Scenarios

1. Concrete Reinforcement

Widely used in concrete to reduce cracking and improve durability.

2. Cement and Mortar

Enhances bonding and reduces shrinkage cracks.

3. Road and Pavement Construction

Improves resistance to wear and fatigue.

4. Shotcrete Applications

Provides reinforcement in tunnel and mining projects.

5. Geotextiles

Used in soil stabilization and erosion control.

6. Industrial Flooring

Increases impact resistance and reduces cracking.

7. Textile Industry

Used in ropes, carpets, and industrial fabrics.

Working Principle

Polypropylene filament fibers work by forming a three-dimensional reinforcement network within a material matrix. When stress is applied, the fibers help distribute the load, reducing stress concentration and preventing crack propagation.

This mechanism improves:

• Tensile strength

• Impact resistance

• Crack resistance

• Overall structural integrity

Usage Instructions

1. Dosage

• Typically 0.6 kg to 1.5 kg per cubic meter of concrete

• Adjust based on application requirements

2. Mixing Process

• Add fibers gradually during mixing

• Ensure uniform distribution

3. Mixing Time

• Extend mixing time by 2–3 minutes for proper dispersion

4. Application

• Suitable for manual or machine application

5. Curing

• Follow standard curing procedures for optimal performance

Storage and Handling

• Store in dry, ventilated areas

• Avoid direct sunlight exposure

• Keep packaging sealed until use

• Handle with care to prevent contamination

Maintenance and Quality Control

• Ensure consistent fiber dosage

• Monitor mixing quality

• Test material performance periodically

• Use certified products for critical applications

Common Problems and Solutions

1. Fiber Clumping

Cause: Improper mixing
Solution: Add fibers gradually and increase mixing time

2. Uneven Distribution

Cause: Incorrect mixing sequence
Solution: Follow proper mixing procedures

3. Reduced Workability

Cause: High fiber dosage
Solution: Adjust mix design or use additives

4. Surface Exposure of Fibers

Cause: Improper finishing
Solution: Use proper finishing techniques

How to Choose the Right Polypropylene Filament Fiber

Key Considerations

• Application type

• Required strength

• Fiber Length and diameter

• Environmental conditions

• Budget

Expert Tip

Select fibers with appropriate surface treatment for better bonding performance in specific applications.

Frequently Asked Questions (FAQ)

Q1: What is Polypropylene Filament Fiber used for?

A: It is used for reinforcement in concrete, mortar, textiles, and industrial applications.

Q2: What is the difference between filament and staple fiber?

A: Filament fibers are longer and continuous, while staple fibers are shorter and cut.

Q3: Is Polypropylene Fiber better than steel fiber?

A: It depends on the application; polypropylene offers corrosion resistance and cost advantages.

Q4: Does it affect concrete strength?

A: Yes, it improves tensile strength and crack resistance.

Q5: Is it environmentally friendly?

A: It is recyclable and has a low environmental impact compared to some materials.

Q6: Can it be used in all climates?

A: Yes, it performs well in various environmental conditions.

Q7: How is it added to concrete?

A: It is mixed directly into the concrete during batching.

Q8: Does it replace traditional reinforcement?

A: In some applications, yes, but not all structural uses.

Conclusion

Polypropylene Filament Fiber is a versatile and high-performance material that plays a crucial role in modern construction and industrial applications. Its unique combination of strength, durability, chemical resistance, and cost-effectiveness makes it an ideal choice for reinforcing materials and improving structural performance.

By selecting the right type of fiber and following proper usage guidelines, industries can significantly enhance product quality, reduce maintenance costs, and achieve long-term reliability.

As demand for sustainable and efficient materials continues to grow, polypropylene filament fiber will remain a key solution for innovation and performance improvement across multiple sectors.
