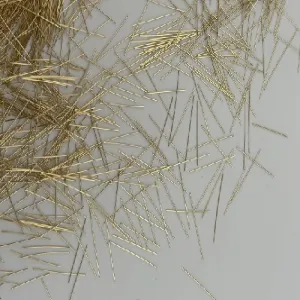

Rebar Steel Fiber

1. Introduction to Rebar Steel Fiber

Rebar Steel Fiber is a specialized high-strength reinforcement material designed to enhance the structural performance of concrete. While traditional rebar is placed in a specific orientation within the concrete, rebar Steel Fibers are dispersed uniformly throughout the mixture to create a three-dimensional reinforcement system. This dual-role material provides the tensile strength of steel reinforcement combined with the distribution benefits of Fiber Reinforcement.

Unlike conventional steel Fibers, Rebar Steel Fiber is engineered with greater length, higher tensile strength, and improved anchorage mechanisms, making it particularly suitable for structural concrete applications. The improved mechanical properties allow it to carry tensile stresses, reduce crack formation, and increase toughness, ductility, and post-crack load-bearing capacity.

Rebar Steel Fiber is manufactured from cold-drawn steel wire and may come in hooked, crimped, twisted, or embossed shapes to ensure a strong mechanical bond with the concrete matrix. This product is widely used in tunnels, heavy industrial floors, precast concrete elements, bridges, foundations, and other structural applications requiring reliable reinforcement.

2. Technical Specifications of Rebar Steel Fiber

Rebar Steel Fiber comes in various specifications depending on structural requirements. The following parameters are representative of typical engineering-grade fibers.

2.1 Material Composition

• High-carbon cold-drawn steel

• Tensile strength: 1100–1600 MPa

• Optional coatings: galvanized, copper-coated, anti-rust finish

• Complies with ASTM A820 and EN 14889-1

2.2 Geometric Parameters

• Length (L): 40–60 mm

• Diameter (D): 0.7–1.2 mm

• Aspect Ratio (L/D): 50–80

• Shapes available:

• Hooked-end steel fiber

• Twisted Steel Fiber

• Crimped Steel Fiber

• Deformed Steel Fiber

2.3 Mechanical Properties

Property

Typical Value

2.4 Packaging and Delivery

• 20–25 kg bags

• Moisture-proof packaging

• Palletized for container shipping

3. Structural Characteristics of Rebar Steel Fiber

Rebar Steel Fiber is designed to act similarly to reinforced steel bars but dispersed throughout the concrete matrix. Its structural characteristics include:

3.1 Enhanced Mechanical Anchorage

Hooked or deformed shapes significantly increase pull-out resistance and bond strength.

3.2 Uniform Stress Distribution

Unlike traditional rebar concentrated in specific zones, steel fibers provide reinforcement across the entire concrete body.

3.3 Improved Crack Bridging

Fibers act as bridges across cracks, preventing crack widening and promoting structural continuity.

3.4 Resistance to Dynamic and Fatigue Loads

Ideal for vibration-intensive environments such as highways, industrial machinery foundations, and tunnels.

3.5 Superior Ductility

Reduces brittleness of concrete and increases post-crack load carrying capacity.

4. Key Features of Rebar Steel Fiber

Rebar Steel Fiber offers the following performance-enhancing features:

1. High tensile strength surpassing traditional steel wire.

2. Strong mechanical anchorage through hooked or twisted designs.

3. Three-dimensional reinforcement improves all-directional load resistance.

4. Enhanced bonding between fiber and cement matrix.

5. Corrosion-resistant surface treatment optional.

6. Good compatibility with ready-mix, precast, and shotcrete applications.

7. Simplifies reinforcement placement by reducing or eliminating rebar mesh.

5. Advantages of Rebar Steel Fiber

5.1 Superior Crack Control

Fibers dramatically reduce plastic and drying shrinkage cracks. They also limit crack width under loads.

5.2 Increased Strength and Load Capacity

Concrete reinforced with rebar steel fibers shows improved:

• Flexural strength

• Tensile capacity

• Shear resistance

• Fatigue endurance

5.3 Higher Impact and Abrasion Resistance

Recommended for industrial floors, pavements, and heavy-duty structures.

5.4 Reduces Rebar Usage

In many cases, it partially or fully replaces traditional reinforcement, reducing installation time and material cost.

5.5 Improved Durability

Dense, Fiber-Reinforced Concrete resists environmental degradation and requires less maintenance.

5.6 Enhanced Seismic Performance

The ductile behavior of fiber-reinforced concrete makes it ideal for earthquake-prone regions.

6. Applications of Rebar Steel Fiber

Rebar Steel Fiber is suitable for a wide range of structural and non-structural concrete applications.

6.1 Industrial Flooring and Heavy-Duty Slabs

• Factories

• Warehouses

• Logistics hubs

• Aircraft hangars

• Port pavements

Fibers improve the slab's ability to resist heavy loads, forklift traffic, and high impact.

6.2 Tunnels and Underground Structures

• Metro tunnels

• Mining tunnels

• Hydropower tunnels

• Underground parking

Rebar Steel Fiber enhances the toughness and adhesion of shotcrete linings.

6.3 Precast Concrete Products

• Precast tunnel segments

• Utility vaults

• Drainage pipes

• Wall panels

• Prefabricated slabs

It improves production efficiency and reduces the need for conventional reinforcement mesh.

6.4 Roads, Pavements, and Bridges

• Highways

• Airport runways

• Bridge decks

• Rigid pavements

• Parking lots

Fibers help control cracking caused by temperature fluctuations and traffic loads.

6.5 Foundations and Structural Concrete

• Raft foundations

• Shear walls

• Retaining walls

• Columns and beams (as secondary reinforcement)

These structures benefit from greater ductility and crack resistance.

6.6 Marine & Coastal Structures

• Harbors

• Offshore platforms

• Wave protection structures

Fibers improve concrete resistance to impact and deterioration in wet environments.

7. Usage Instructions for Rebar Steel Fiber

7.1 Recommended Dosage

The dosage depends on the structural design requirements:

Application

Dosage (kg/m³)

7.2 Mixing Procedures

1. Add Rebar Steel Fibers slowly into the concrete mixer.

2. Mix at low speed for 30–60 seconds.

3. Increase to full speed for 3–5 minutes until fibers disperse uniformly.

4. Add superplasticizers if needed for improved workability.

7.3 Placement

• Suitable for both pumping and pouring.

• Vibrate lightly to remove trapped air.

• Avoid segregating fibers by over-vibration.

7.4 Finishing

• Use standard finishing tools such as screeds and trowels.

• Avoid excessive troweling, which may expose fibers.

7.5 Curing

Follow standard curing procedures to ensure maximum strength development.

8. Quality Control and Standards

Rebar Steel Fiber should comply with international standards:

8.1 Standard Compliance

• ASTM A820 Type I, II, III, IV

• EN 14889-1: Steel Fibres for Concrete

• ISO 13270: Classification of Steel Fibres

8.2 Material Tests

Typical quality tests include:

• Tensile strength testing

• Flexural performance testing

• Bonding & pull-out tests

• Corrosion Resistance check

• Dimensional accuracy inspection

9. Storage and Handling

• Store in a dry environment away from moisture.

• Keep fibers in sealed bags until use.

• Do not stack pallets excessively.

• Handle with gloves to avoid injury from sharp edges.

10. Common Problems and Solutions

Problem 1: Fiber Balling

Cause: Too many fibers added at once.
Solution: Add fibers gradually, mix at low speed initially.

Problem 2: Poor Concrete Workability

Cause: High Fiber Content.
Solution: Use plasticizers or adjust mix design.

Problem 3: Pumping Difficulty

Cause: Incorrect pump or mix.
Solution: Use a pump suitable for fiber concrete and adjust aggregate distribution.

Problem 4: Fibers Visible on Surface

Cause: Over-troweling or improper compaction.
Solution: Adjust finishing method and ensure uniform fiber dispersion.

11. Frequently Asked Questions (FAQ)

1. What makes Rebar Steel Fiber different from regular steel fiber?

Rebar Steel Fiber has higher tensile strength, greater length, and stronger anchorage, making it suitable for structural applications.

2. Can Rebar Steel Fiber replace traditional rebar?

In many applications, yes. In structural concrete, it often serves as partial replacement depending on engineering design.

3. Does fiber reinforcement increase concrete strength?

Yes. It improves tensile strength, flexural performance, shear resistance, and toughness.

4. Is fiber-reinforced concrete easy to pump?

Yes, provided the mix is properly designed and the correct pump is used.

5. Will Rebar Steel Fiber rust?

High-quality fibers are coated and embedded in dense concrete, minimizing corrosion risk.

6. What is the typical fiber dosage?

Between 20–80 kg/m³ depending on structural requirements.

7. Is special finishing equipment required?

No. Standard tools work well with slight adjustments to the finishing technique.

8. Can it be used in cold or hot climates?

Yes. Fiber reinforcement improves thermal crack resistance.

Conclusion

Rebar Steel Fiber is an advanced reinforcement material designed to provide superior strength, durability, crack resistance, and toughness to concrete structures. It serves as a practical alternative to traditional reinforcement in many applications, offering cost savings and performance benefits. With its versatility in industrial floors, tunnels, pavements, precast products, and structural concrete, it plays a critical role in modern construction where long-term durability and strength are essential.
